SKU:19077788
Products include Temperature controller Special note: After the temperature controller is turned on, the default is degree Fahrenheit；Digital Display PID : Support reading with Centigrade or Fahrenheit unit （factory default to Fahrenheit unit）; be able to display measured and Controller temperature ；Display Character: PV: 4 digital 9.9mm height Red LED Letters；SV: 4 digital 8mm height Green LED LettersPower Supply Voltage: AC 85-265V 50/60Hz ；Input: K，PT100 （can choose）factory default to K type ; Output: Solid state relay SSR ; Alarm mode: factory default to 1 way High deviation alarm（can choose） Solid state relay SSR-40da is installed inside the temperature control box Rotary switch Material : Plastic and Metal; Terminal Quantity : 2; Contact Type :1 NO; Action Type : Latching.Mount Hole Diameter : 22mm / 0.87"(7/8"); Fit Panel Thickness: Max 8.5mm / 0.33". Indicator light When the device is turned on, The indicator lights up, indicating whether it works or not Knob type safety tube To prevent excessive current, protection appliances, performance more stable Wiring board What kind of wire is connected to each terminal is attached under the wiring board Just follow the instructions and wire directly Temperature sensor The product comes with a temperature sensor used for testing Type: K Type; Measuring Range: 32~1112°F (0~600°C)Probe Length: 6mmx20mm/0.23“x0.79“（D * L）; Terminal: 2 Insulated forks; Thread:2 MetersInternal Insulation: Fibreglass; External Shielding: Metal Shield;Thread ： 1/4"How to use :Connect the red fork to the" + "positive pole , and the blue ones are for "-" negative pole TEST After each product is installed by our professionals, Then it will be tested by professional testers It will not be sent until the test is successful Widely used Temperature control box, suitable for a variety of temperature control scenes: IR far infrared oven equipment, drying equipment, printing and dyeing equipment, UV curing machine, plastic machinery, small water tank, and other scenes that need electric heating to control temperatureThis product is easy to use, and it can be directly connected to the heating equipment according to the instructions. The internal wiring of the temperature control box has been installed, saving the test timeThis product can be used for intelligent pid temperature control instrument, chicken farm farm fan, automatic temperature controller, oven constant temperature control box PID Temperature Controllers+ K Sensor + Heat Sink and Solid State Relay PID Temperature Controllers +K Sensor + Black Heat Sink and Solid State Relay Mv100-B10 Digital Display PID Temperature Controller + Thermocouple K Sensor Twidec/DC 12V Temperature Controller Box Programmable -50~ 110 ℃ (-58~ 230 °F) Add to Cart Buying Options Buying Options Add to Cart Customer Reviews 4.1 out of 5 stars 193 4.2 out of 5 stars 7 3.8 out of 5 stars 9 3.6 out of 5 stars 13 Price $39.99$39.99 — no data — no data $19.99$19.99 Thermocouple ✓ ✓ ✓ ✓ SIZE 51mm*51mm 51mm*51mm 51mm*51mm 80mm*80mm Solid State Relay ✓ ✓ no data no data Waterproof Dustproof IP67 Junction Box 8"x 6"x 4"(200 x 150 x 100 mm) PID Temperature Controllers 72x72mm +Thermocouple + Heat Sink +Solid State Relay NPT 1/2"inch (6X50MM) Pipe Thread Temperature Sensor 304 Stainless Steel K Type Add to Cart Buying Options Add to Cart Customer Reviews 4.6 out of 5 stars 31 4.1 out of 5 stars 18 4.6 out of 5 stars 407 Price $17.99$17.99 — no data $12.99$12.99 SIZE 200 x 150 x 100 mm 72mm*72mm no data

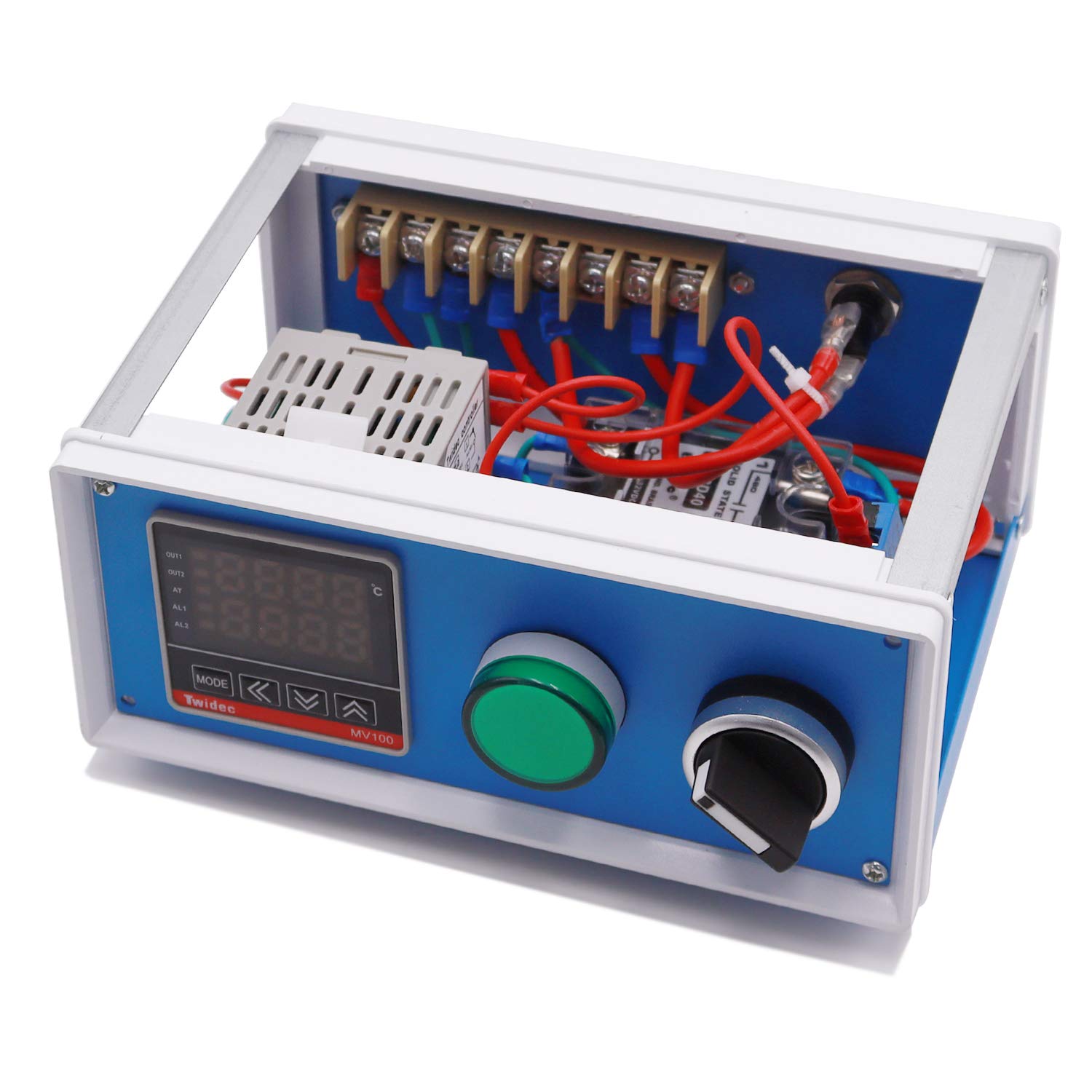

Product name Temperature Controller MV100-B10 + solid state module relay SSR-40DA, 3-32VDC/24-380VAC Temperature Controller Box；Special note After the temperature controller is turned on, the default is degree Fahrenheit
Digital Display PID Support reading with Centigrade or Fahrenheit unit （factory default to Fahrenheit unit）; be able to display measured and Controller temperature ；Display Character PV 4 digital 9.9mm height Red LED Letters；SV 4 digital 8mm height Green LED Letters
Total size170mm x 155mm x 90mm/6.7"*5.9"*3.5"(L*W*H);Controller Front Panel Dimension DIN 51mm(W)X51mm(L)/2"*2"
Power Supply Voltage AC 85-265V 50/60Hz ；Input K，factory default to K type ; Output Solid state relay SSR ; Alarm mode factory default to 1 way High deviation alarm（can choose）
Box Including：MV100 Controller；SSR 40DA solid state relay ;Rotary switch；Indicator light；Knob type safety tube；Wiring board；Temperature sensor
I got this to control the temp in cacao fermentation and sweat vanilla beans. Basically hold a consistent temp at 115-125' in a plastic beer cooler using a modified tiny electric space heater. It was very simple to set the hold temp and its working perfect. It is possible to set programs, I am just holding a consistent temp and manually adjusting the set point. Way easier taking 5 minutes to wire this to a ceramic heating element than building something similar from individual components.
