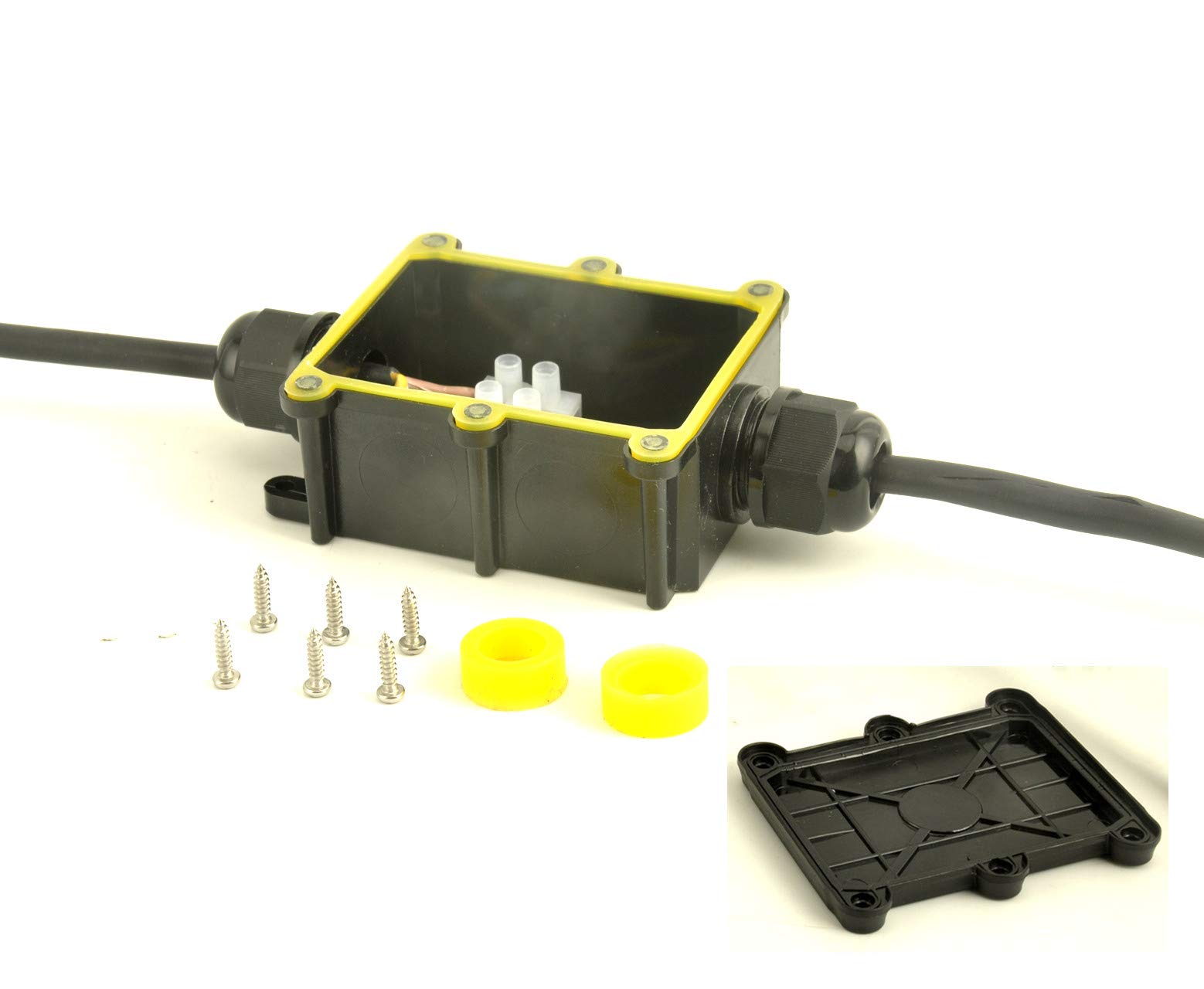

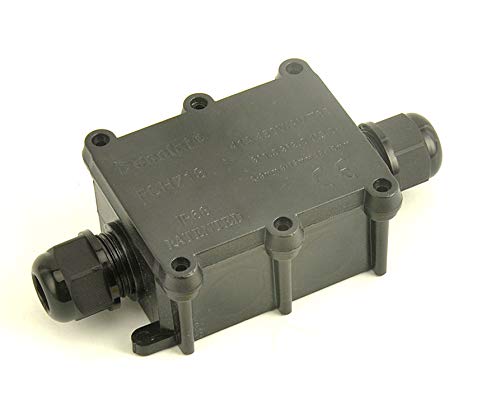

Waterproof Junction Box IP68 - Outdoor Electrical Enclosure with 2-Way M20 Coaxial Cable Connector (4-12mm Wire Range) - Ideal for Outdoor Wiring, Solar Panels & Marine Applications

Product Description

Technical Specifications Products name : 2 way waterproof junction box Material : High quality PC, heat-resistance and waterproof gasket Waterproof level : IP68 Wire range : Ø4-9mm/9-12mm Rated voltage: ≤ 450v Rated current: ≤ 41A Working Temperature: -40 - 105 ℃ Waterproof Junction box performance The casing is made of PC with high temperature resistance( -40° C - 105° C); The inner conductor is cooper core filling for better abrasion resistance and electronic conductivity;The sealing element is Silicone Ring with perfect waterproof level . Very Easy to Install You only need a screwdriver to install it. Application Area These waterproof wire connectors are suitable for connecting and extending power cables for Outdoor Lightings; Widely used for garden lamps, patio light and other outdoor LED light, underwater engineering, underground engineering, mining engineering, solar panel system and electrical wire connecting . Waterproof junction box is further used in coastal, river or underwater engineering, underground engineering, mining engineering, and various mechanical equipment. Warnings After completion, Please confirm whether the waterproof connector is installed and clamped tightly and the cable is completely sealed. Please don't use the waterproof joint box when it is seriously damaged. Package 1.1x Waterproof junction box 2.2 x Small Rubber ring (9-12mm) 3.One more gasket for repair. 4.One plug block in case you use. 5.Installation instruction for your reference.
